OEM Rack And Pinion Pneumatic Rotary Actuator 90 Degrees

Brand Name : OEM

Model Number : AT32 Stainless Steel Pneumatic Actuator

Certification : CE ATEX ISO9001

name : OEM Rack And Pinion Pneumatic Rotary Actuator 90 Degrees

keyword : NAMUR Stainless Steel Pneumatic Actuator

Power : Pneumatic control

Rotation Angle : 90 degrees

Metarial : stainless steel 304 or 316

Structure : rack and pinion rotary actuator

Working Pressure : 2-8 bar

Surface Treatment : hard anodizing

Connection : NAMUR, ISO5211 and DIN3337

Application : ball valve, butterfly valve, and rotary machine

feature : Low Friction、High Cycle Life 、No Noise

modes : Double Acting And Single Acting Spring Return

design : compact

Accessories of pneumatic actuator : Limit Switch Box, Solenoid Valve, Positioner

Contact Now

OEM Rack And Pinion Pneumatic Rotary Actuator 90 Degrees

Stainless Steel Pneumatic Actuator Description

Ball Valve 304 Stainless Steel Pneumatic Actuators Are Compact And Reliable Actuators In Rack And Pinion Design For Consistent Torque Output. The At-Series Actuator Is Housed In Corrosion Resistent Stainless Steel, Ideal For Environments Where Sanitary Requirements Are Necessary And Where Objects Corrode In Damp Conditions. Pulp And Paper, Marine, And Dairy Are Ideal Markets Plus Many Others.

Stainless Steel Pneumatic Actuator Table

Brand	OEM
Model	AT32
Certification	CE ATEX ISO9001
Power	Pneumatic control
Rotation Angle	90 degrees
Metarial	stainless steel 304 or 316
Size	52-300
Structure	rack and pinion rotary actuator
Working Pressure	2-8 bar
Surface Treatment	hard anodizing
Connection	NAMUR, ISO5211 and DIN3337
Application	ball valve, butterfly valve, and rotary machine
feature	Low Friction,High Cycle Life ,No Noise
modes	Double Acting And Single Acting Spring Return
design	compact
Accessories of pneumatic actuator	Limit Switch Box, Solenoid Valve, Positioner.

Stainless Steel Pneumatic Actuator Application

OEM Rack And Pinion Pneumatic Rotary Actuator 90 Degrees

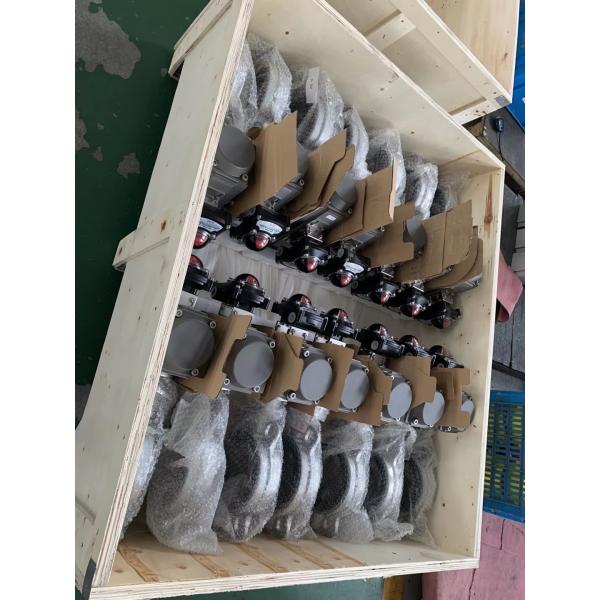

Stainless Steel Pneumatic Actuator Packed Separately In Cartons, Wooden Pallets Or Wooden Cases.

OEM Rack And Pinion Pneumatic Rotary Actuator 90 Degrees
